The machine has TWO BIG ADVANTAGES
in comparison to other machines:
- Permanent bending station
conforming to CE regulation (picture 1)
- NEW shearing system with minimum distortion
of flats (picture 2)
![](http://www.iron-workers.com/images_singlecylinder/bendicrop02.gif)
Picture 1
![](http://www.iron-workers.com/images_singlecylinder/bendicrop03.gif)
Picture 2

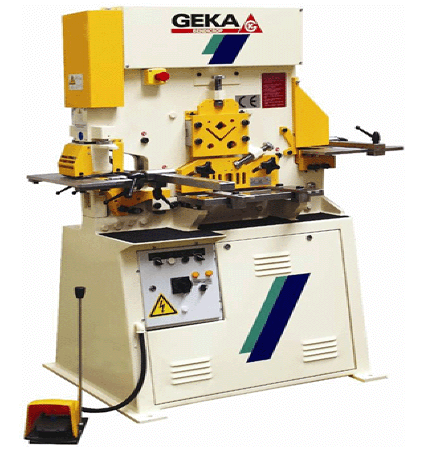

ONE HYDRAULIC CYLINDER PUNCHING, SHEARING AND
BENDING MACHINE
Accessories mounted on the machine as
standard included on basic price:
- Standard punching attachment: Punch holder;
Punch clamp sleeve; Quick change nut; Punching
stripper; Table for punch; Set of punch and die
(picture 3).
- Top and bottom blade for cutting flat bars, with
the new anti-distortion system.
This station is provided with a guided table for
flats, to guide the material from 45º to 90º
(picture 4).
- Movable and fix blades for cutting angles and
round and square bars (picture 5).
- Rectangular notching equipment with the notching
rectified table provided with a scaled rule
(picture 6).
- Bending equipment with two dies (V of 40 and 70
mm).
- Two different speeds, to cover the CE regulation
with the bending station.
- Universal electric automatic bar stop
![](http://www.iron-workers.com/images_singlecylinder/bendicrop04.gif)
Picture 3 |
![](http://www.iron-workers.com/images_singlecylinder/bendicrop05.gif)
Picture 4 |
![](http://www.iron-workers.com/images_singlecylinder/bendicrop06.gif)
Picture5 |
![](http://www.iron-workers.com/images_singlecylinder/bendicrop07.gif)
Picture6 |
|
